Split Hot Water Boiler

Split Hot Water Boiler

Thermal power: 700~14000KW

Thermal efficiency: >94%

Introduction:After years’ data accumulation from our users, the wet back design has proven to give much longer useful life cycles than dry back boilers. As time goes by, Fangkuai Boiler Researching & Developing team has succeed in efficiency and higher-level safety. Boiler is set with the fifth water-level detector, which can avoid false alarm and super-low water-level without alarm. Fangkuai not only offer you the best quality, also the easy operation and low operating cost.

 Chat Online Messages Email

Features

01

Quality

Each unit is tested and inspected and registered with the National Board of Boiler and Pressure Vessel Inspectors.

02

Efficiency

This kind of boiler is designed for optimum gas-fired efficiency and has proven in certified tests to meet, and often exceed, the efficiency of four-pass and three pass boilers.

03

Durability

Built in accordance with the ISO9001 Code, the wet back design has proven to give much longer useful life cycles than dry back boilers.

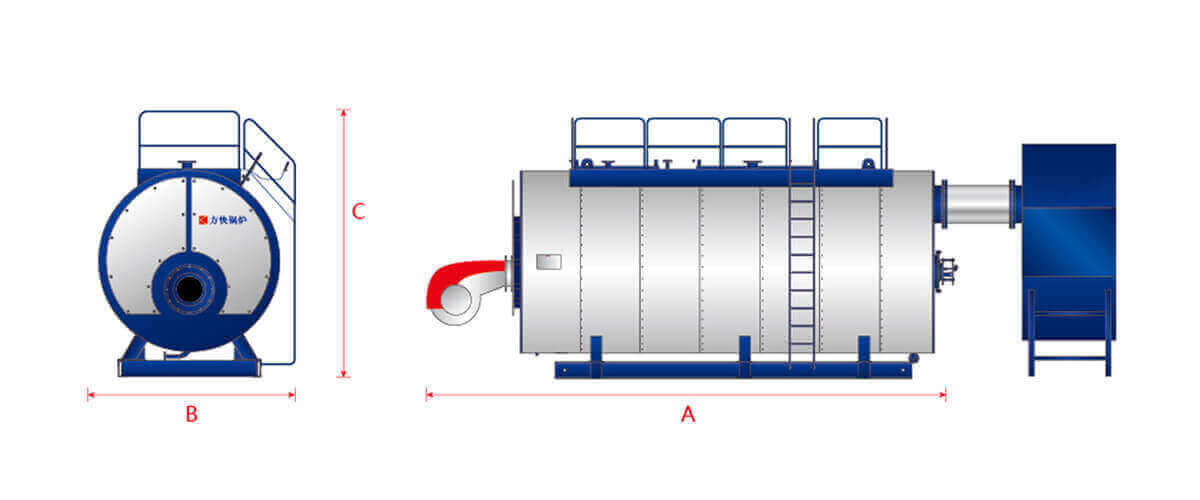

Product profile and dimension drawing

Parameterss

Model Heating area Rated thermal power Cyclic water quantity Fuel consumption Maximum boiler size Water inlet / outlet Drain outlet Chimney diameter Pass to  atmosphere Weight Remarks
Light oil Gas Length Width Height
Unit Kcal/h m³/h kg/h Nm³/h mm mm mm mm mm mm mm t
CWNSL0.7-95/70-Y/Q 6000 60×104 24.1 63.6 71.3 3370 1660 1830 DN100 DN50 300 DN80 2.32 Central reverse
CWNSL1.4-95/70-Y/Q 12000 120×104 48.2 127.3 142.7 3450 1820 2030 DN100 DN50 350 DN125 3.04
CWNSL2.1-95/70-Y/Q 18000 180×104 72.2 190.9 214.1 4200 1940 2420 DN125 DN50 350 DN150 5.04
CWNSL2.8-95/70-Y/Q 24000 240×104 96.3 254.5 285.4 5230 1940 2340 DN125 DN50 450 DN150 5.24
CWNSL4.2-95/70-Y/Q 36000 360×104 144.5 381.8 428.1 6550 2340 3640 DN150 DN50 550 DN200 10.08 Three process
CWNSL5.6-95/70-Y/Q 48000 480×104 192.6 509 570.7 7580 2550 3780 DN200 DN50 700*550 DN250 16.4
General Rated outlet / inlet temperature 95/70 Rated thermal efficiency % 91-93 Power supply V/Hz 380/50

Take 38.3MJ/Nm³ as the low calorific value of natural gas

As the technology is constantly updated, it is subject to change without notice. For detailed parameters, please refer to the headquarters of Fangkuai Boiler co., LTD.
